Product information

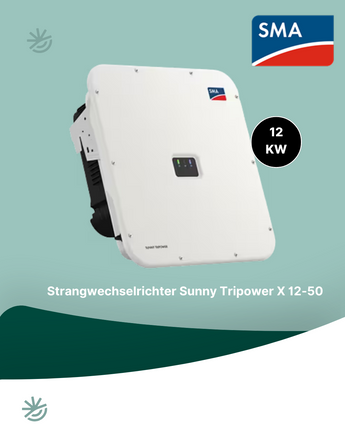

Solar inverter for grid feed-in Pac,r/Sac,max 12000 W/12000 VA, three-phase feed-in, with reactive power feed-in, transformerless, Ethernet and WLAN communication interface, browser-based configuration of country settings, 3 independent MPP trackers, 6 DC inputs, fuseless DC architecture, SUNCLIX connection, integrated DC load disconnector, AC connection for copper conductors, optional DC surge arrester type II or I/II with integrated ArcFix arc detection. Integrated system manager for up to 5 SMA inverters (135 kVA) and 1 Energy Meter, as well as direct connection to the Sunny Portal powered by ennexOS. Easy commissioning and parameterization via the integrated web server or using the SMA 360° app.
Technical details
| Arc Fault Circuit Interrupters: | Yes |
| Topology: | Transformers |
| Feed-in phases: | 3 |
| Boost converter: | Yes |
| AC rated power (kW): | 12.00 |
| Max. DC connected load (kWp): | 18.00 |
| Housing protection class: | IP65 |
| Max. efficiency (%): | 98.20 |
| Interface 1: | Ethernet |
| Max. input voltage DC (V): | 1,000.00 |
| European efficiency (%): | 97.60 |
| Number of MPP trackers (pcs): | 3 |
| Max. number of string inputs (pcs): | 6 |
| Display: | without display |
| Interface 2: | Wi-Fi |
| Max. AC power (kVA): | 12.00 |
| Max. total input current (A): | 72.00 |
| Max. MPP input voltage (V): | 800.00 |
| Min. MPP input voltage (V): | 210.00 |
| Guarantor: | SMA |
| Product warranty (years): | 5 |
This information will be added shortly.
Questions & Answers
Frequently asked questions.
How long does delivery take?
Shipping typically takes 3-5 business days , depending on the product and stock availability. You will be notified by email once your order has been shipped.
Can I also pick up the items?
Yes, pickup is possible. Please select this option during checkout.
Can I have you install the system for me?
Yes, we offer installation by our experts . Contact us for a customized quote at info@solaroutlet.de
Can I become completely self-sufficient with a solar system?
Complete self-sufficiency is difficult, but with a large battery storage system and emergency power solutions, self-consumption can be significantly increased. Grid connection usually remains a sensible option.
What maintenance does a solar system require?
Minimal maintenance is required . A regular visual inspection and, if necessary, cleaning of the modules is sufficient. The inverter should be inspected every few years.
